2016 Bandsaw Everising H 560 HA

Verkauft

2016 Bandsaw Everising H 560 HA

Erwitte, Deutschland

Beschreibung

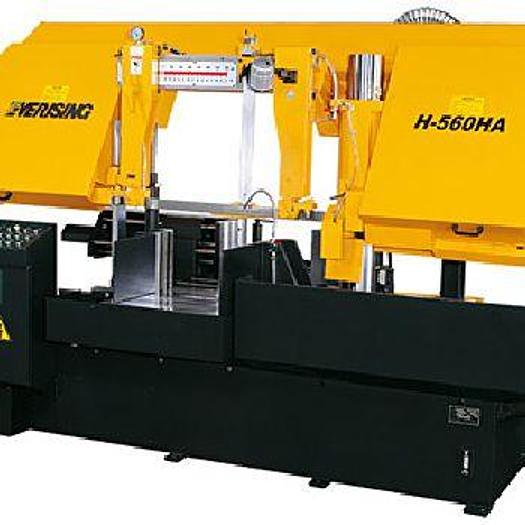

Brand new Horizontal CNC Bandsaegevollautomat in 2 columns-execution manufacturers Everising (Taiwan) Type H-560HA Everising fully automatic machines are designed for the uncompromising use in production. With a full CNC control and a Visual Dialog control system, these fully automatic machines are easy to use and convince through outstanding cutting performance. SPECIFICATIONS Schnittkapazitaet About 560 mm rectangular 615 x 560 mm motor power capstan 7.5 KW motor power hydraulic 2.2 KW motor power coolant pump 0.2 KW motor power cleaning brush 0.1 KW Saw band 6600 x 54 x 1.6 mm cutting speed 18 - 90 m / min frequency controlled space 3400 x 2190 mm machine weight 4500 kg Specifications material feed Vorschublaenge 400 mm multiple feed 9 x400 mm STANDARD eQUIPMENT Massive steel construction in Doppelsaeulen principle Automatic feed (principle shuttle?) frequency (continuously controlled inverter) regulates the cutting speed digital interface Speedometer free adjustable feed vise Split

Spezifikationen

HerstellerEverising
Jahr2016
ZustandGebraucht
